Standard Features

·         Automatic Grease Collection & Discharge
Automatically separates and removes accumulated grease without manual intervention.

·         Automatic Solid Waste Collection & Discharge
Effectively captures food residues and solids to prevent pipe blockages.

·         Automatic Heating System
Maintains optimal grease fluidity for efficient separation and discharge.

·         Automatic Wastewater Lifting & Discharge
Integrated lift station enables reliable wastewater transfer to higher drainage points.

Optional Features

Automatic Backwash System

Reduces maintenance requirements by automatically cleaning internal components and improving long-term operational efficiency.

PLC-Based Remote Monitoring & Control System

Supports integration with Building Automation (BA/BMS) systems.

Features include:

·         Remote Start / Stop Control

·         Remote Parameter Adjustment

·         Real-Time Equipment Status Monitoring

·         Fault Alarm Notification

·         Password-Protected Remote Access

·         4G Connectivity

·         Wi-Fi Connectivity

·         Ethernet Connectivity

Enables unattended operation and centralized facility management.

Key Benefits

Fully Enclosed Odor-Control Design

Prevents unpleasant odors from escaping and improves the surrounding environment.

Intelligent All-in-One Automation

Minimizes manual operation and reduces daily maintenance workload.

Heavy-Duty 304 Stainless Steel Construction

Provides excellent corrosion resistance and long service life.

Ideal for Basement Installations

A preferred solution for underground kitchens, basement restaurants, and parking-level food service areas.

Four Integrated Functions in One System

·         Solid Waste Removal

·         Grease Separation

·         Wastewater Lifting & Discharge

·         Online Monitoring & Control

A single integrated solution that helps maintain clean drainage systems while supporting regulatory-compliant wastewater discharge.

Typical Applications

Suitable for:

·         Hotels

·         Shopping Malls

·         Commercial Complexes

·         Food Courts

·         Chain Restaurants

·         Basement Kitchens

·         Underground Food Service Facilities

Designed to accommodate a wide range of installation conditions and project requirements.

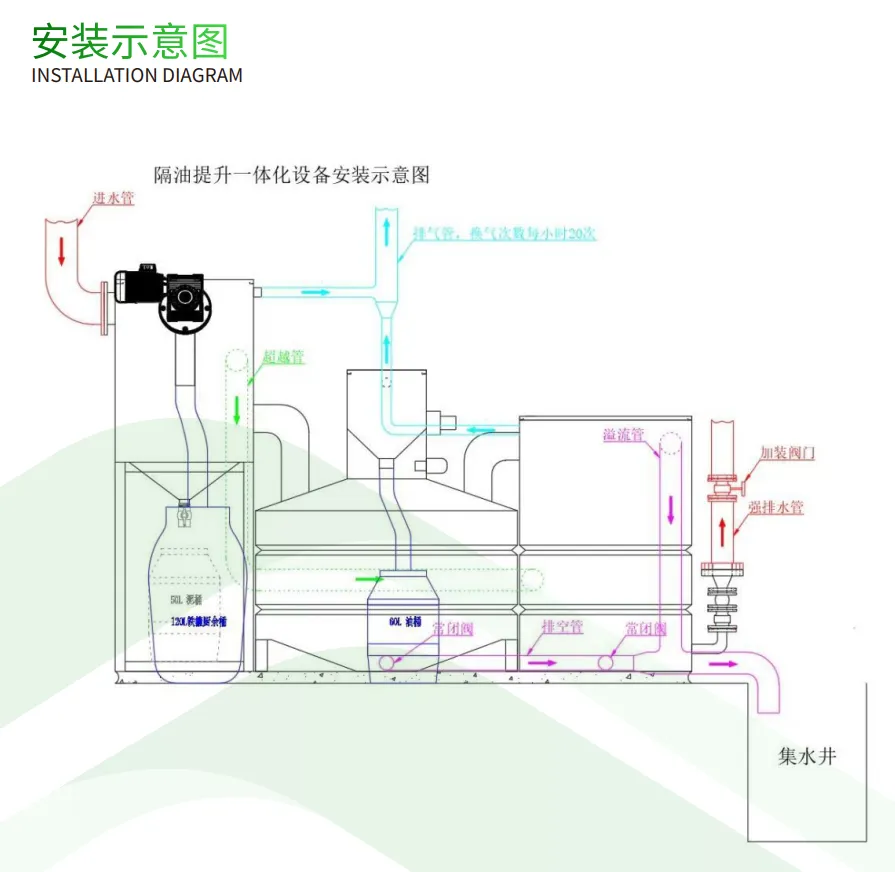

System Configuration

1. Intelligent Wastewater Lifting System

Integrated lifting pumps ensure reliable wastewater transfer where gravity drainage is not available.

2. Automatic Screen Filtration & Solids Discharge System

Automatically captures and removes food waste and suspended solids to minimize pipe blockage and maintenance requirements.

3. Intelligent Grease Separation & Automatic Oil Discharge System

Efficiently separates grease from wastewater and automatically removes collected oil for continuous operation.

4. Intelligent Constant-Temperature Heating System

Maintains optimal operating temperature to improve grease fluidity and separation efficiency.

5. PLC-Based Remote Monitoring & Control System

Supports real-time monitoring, remote operation, alarm notifications, and integration with building management systems (BMS).

6. Manual Sludge Drainage Device

Allows periodic removal of settled sludge for easy maintenance.

7. Automatic Backwash System (Optional)

Automatically cleans internal components to improve system performance and reduce maintenance frequency.
