Automatic Grease Separator without Wastewater Lift Pump
（Ideal for above-ground installations where gravity drainage is available.）
Product Overview

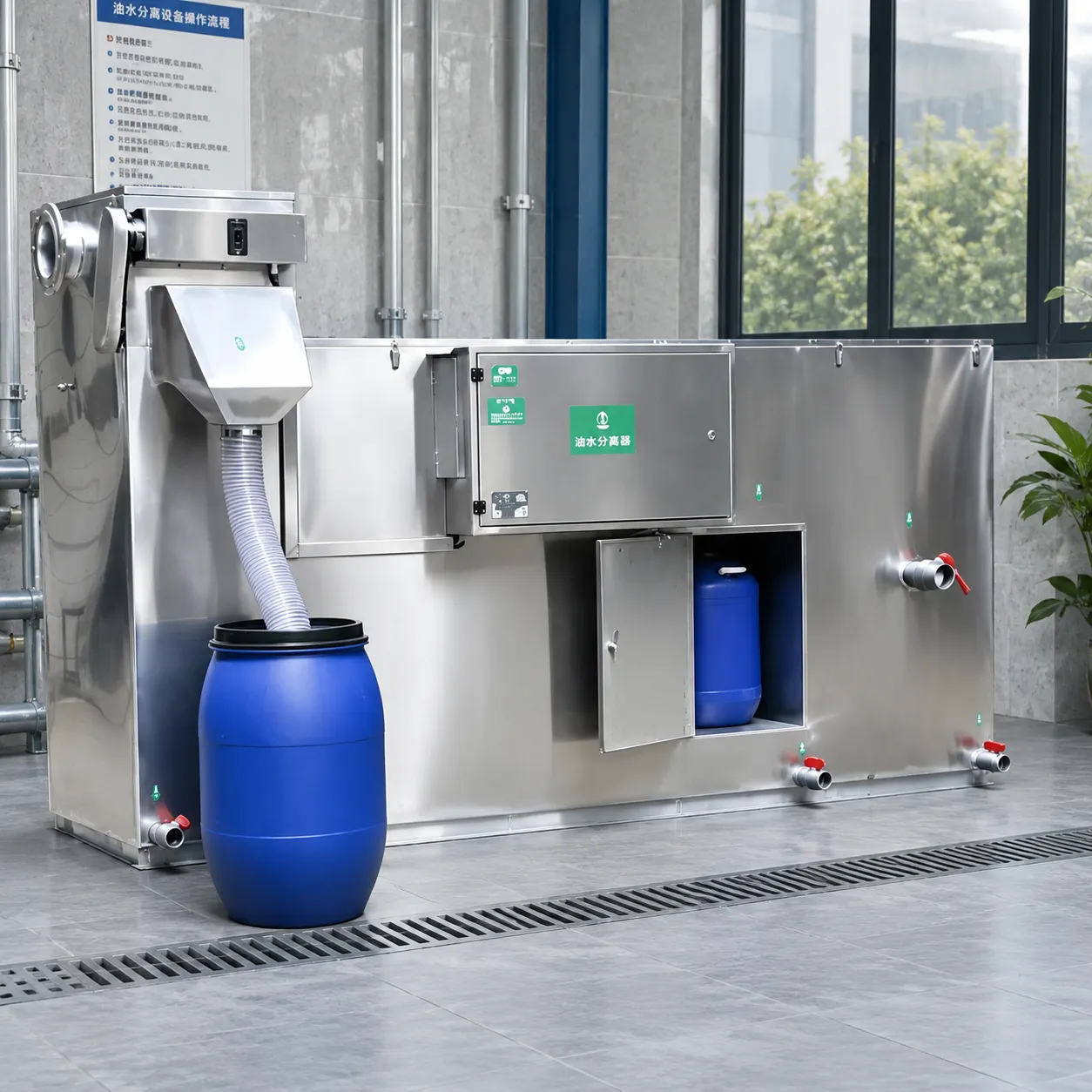

The Open-Type Fully Automatic Grease Trap & Oil-Water Separator features an open-top 304 stainless steel tank structure and an intelligent PLC automatic control system. Utilizing a combination of physical separation and dissolved air flotation (DAF) technology, it efficiently separates food waste, grease, and wastewater in a single integrated process.
Designed for continuous automatic operation, the system offers easy installation, low maintenance requirements, and stable effluent quality that meets environmental discharge standards. It is an ideal solution for treating grease-laden wastewater generated in commercial and industrial applications.
Applications
Food Service Industry
Hotels
Restaurants
Cafeterias
Food courts
Commercial Facilities
Shopping malls
Office buildings
Industrial parks
Mixed-use developments
Food Processing Industry
Meat processing plants
Grain and edible oil production facilities
Slaughterhouses
Other grease-containing wastewater treatment applications
Key Advantages
1. Fully Automatic Operation
Automatic collection and discharge of solid waste
Automatic grease skimming and oil discharge
Adjustable operation schedules
Manual/Automatic operation modes
Automatic wastewater lifting via float-level sensing control
24/7 unattended operation, significantly reducing labor costs
2. Open-Top Design for Easy Maintenance
Excellent visibility of internal operation
Convenient inspection and cleaning
Reduced risk of clogging
Minimized odor accumulation
3. High Separation Efficiency
Oil removal efficiency exceeding 95%
Consistently achieves discharge requirements and environmental compliance standards
4. Integrated Constant-Temperature Heating System
Prevents animal and vegetable fats from solidifying
Ensures stable operation during cold weather
Adjustable heating schedule
Manual/Automatic control modes available
5. Durable Stainless Steel Construction
Manufactured from corrosion-resistant 304 stainless steel
Excellent durability and long service life
Advanced intelligent control system with manual/automatic integration
Working Principle
Grease-containing wastewater first enters the solid-liquid separation chamber, where food residues and suspended solids are automatically intercepted and discharged.
The wastewater then flows into the oil-water separation zone. By utilizing the density difference between oil and water, combined with dissolved air flotation (DAF) technology, grease rapidly rises to the surface while sludge naturally settles to the bottom. Inclined plate and inclined screen buffering technologies further enhance separation efficiency.
The built-in temperature control system maintains grease fluidity, ensuring reliable operation year-round. Floating grease is automatically collected and removed by the skimming system, while settled sludge can be periodically discharged through a bottom drain valve.
The treated water is then discharged in compliance with environmental standards.
Key Features of the Treatment Process
100% physical separation process
No chemical additives required
Automatic grease removal
Automatic solid waste discharge
Stable and reliable wastewater treatment performance
Environmentally friendly and energy-efficient operation
Technical Highlights
✔ PLC Intelligent Control System
✔ Automatic Grease Skimming & Discharge
✔ Automatic Solid Waste Removal
✔ Automatic Wastewater Pumping System
✔ Oil Removal Efficiency ≥ 95%
✔ 304 Stainless Steel Construction
✔ Integrated Heating System
✔ Manual / Automatic Dual Operation Modes
✔ Low Maintenance Requirement
✔ 24-Hour Unattended Operation
✔ No Chemicals Required
✔ Easy Inspection and Cleaning Design
